70310 Double Ended Shear Beam Load Cells

70310 Double Ended Shear Beam Load Cells Specification

Product Type
Weighing System

Usage
Analyser

Color
Sliver

Application
Industrial

Voltage
220/240 Volt (v)

Operate Method
Automatic

Power
20 Ampere (amp)

Material
Mild Steel

Output
Digital Sensor

Type
Weighing System

70310 Double Ended Shear Beam Load Cells Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About 70310 Double Ended Shear Beam Load Cells

Performance Specification
Standard Capacities
5,10,15,20,23,30,40,50,75,100 - Tf
Excitation Voltage
10 VDC- Maximum 15 VDC
Nominal Output
3.0 mV/ V
Non - Linearity
< ±0.025% FSO
Hysteresis
< ±0.02% FSO
Non-Repeatability
< ±0.01% FSO
Creep (30 minutes)
< ±0.03% FSO
Zero Balance
±1.0% FSO
Input Resistance
770 ± 20 Ohms
Output Resistance
700 ± 7 Ohms
Insulation Resistance (50 VDC)
> 1000 Mega Ohms
Safe Overload of Rated Capacity
150%
Ultimate Overload of Rated Capacity
300%
Allowable Side Load
50%
Side Load Discrimination
500:1
Temp. Compensated Range
0-60 0C
Temperature Effect on Output
< 0.0015% FSO/ 0C
Temperature Effect on Zero
< 0.0020% FSO/ 0C
Deflection
< 0.5 mm at FSO
Tightening Torque
10 m.kg.
Finish & Construction
Electroless Nickel Plated Tool Steel
Environmental Protection Class
IP68

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in Load Cell For Weighbridge Category

Flintec RC3 Weighbridge Load Cell

Price 22000 INR / Piece

Minimum Order Quantity : 10 Pieces

Color : Sliver

Usage : Analyser

Product Type : Weighbridge

Material : stainles steel

Get a Price/Quote

ADI 90210

Price 12500.00 INR / Piece

Minimum Order Quantity : 1 Piece

Color : Sliver

Usage : Automatic

Product Type : Weighbridge

Material : Mild Steel

Get a Price/Quote

Keli QS-A Weighbridge load cell

Price 4900 INR / Piece

Minimum Order Quantity : 10 Pieces

Color : Sliver

Usage : Tester

Product Type : Weighbridge

Material : Mild Steel

Get a Price/Quote

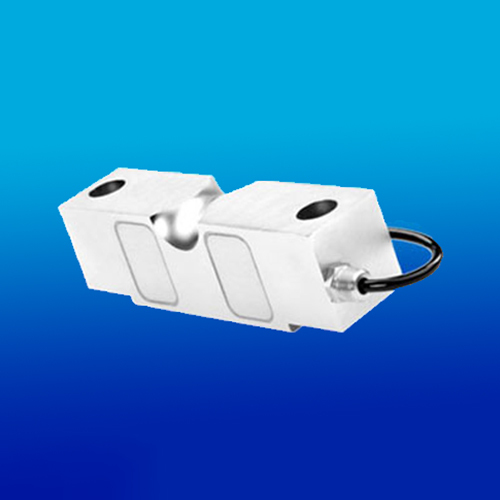

65058 Weighbridge Load Cell
